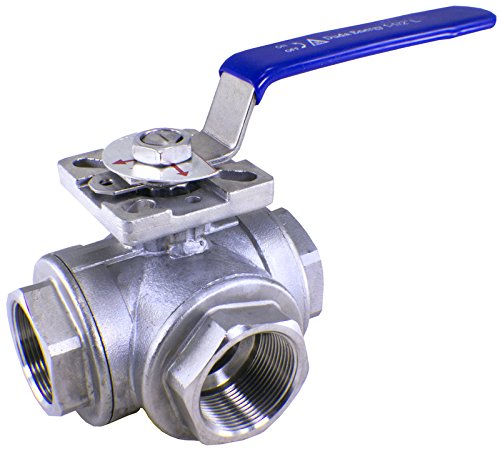

WOG200 3-Way 304 Stainless Steel Ball Valve T-Type 1-1/2" NPT FPT SS304 SUS304
Description

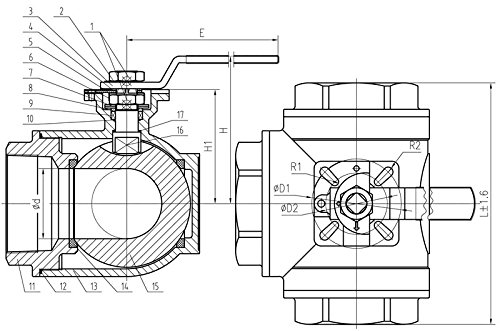

- d: 1.3'', H: 4.2'', H1: 2.7'', E: 7.7'', L: 5.4'', R1: 2'', R2: 2.8'', D1: 0.3'', D2: 0.4'' - See Drawing for Dimension References
- Nominal Working Pressure: 200psi, Shell Test Pressure: 305 psi, Tightness Pressure: 232 psi

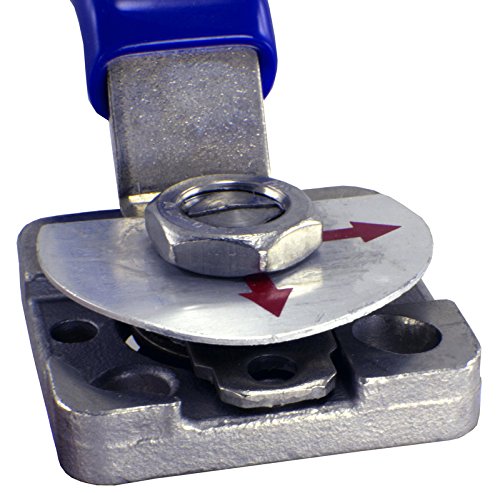

- 304 Stainless Steel Handle with Blue Vinyl Cover
- Female NPT Ports
- Fluid Temp Range: -20°F to 410°F, Use for water, oil, air, gas, Light Acids/Alkali
Size:1-1/2"  |  Style:T-Type 3-Way Stainless steel ball valves with PTFE seals & seats by Duda Energy Duda Energy Stainless steel ball valves with PTFE (Teflon) seats & seals offer excellent corrosion resistance for most applications. Stainless steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. Available in both Wog200 and Wog1000. Wog200 are considered ideal for most general applications. Wog1000 are for high pressure and industrial applications where of the Valve are preferred.
Reviews
S**S
Leaky!
I have had two of these valves for a year or so and both of them leak from multiple locations. Garbage valves, I'm out a nice chunk of change for this crap.
